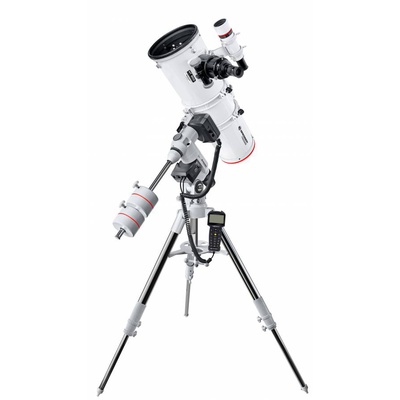

Teleskops Bresser Reflektor 203/800 EXOS 2 GOTO
- Pieejams:Ir noliktavā
- Preces kods:11-4703809
- Piegāde
-
1.494,00 €
BRESSER Reflektor 203/800 EXOS 2 GOTO
In the past few years the BRESSER Newton telescopes have become the standard workhorse for Deep Sky astrophotography. We now proudly present the second generation of this telescope, the BRESSER NT-203s/800 with Hexafoc and fast parabolic main mirror. The Bresser NT-203s/800 f3.9 will deliver you deeper images due to its - compared to 8" f/5 systems - oversized primary mirror and therefore faster optical system with the same exposure time. The big 85 mm secondary prevents vignetting for optimal illumination The excellent 2,5" Hexafoc focuser also does not cause vignetting due to its large diameter and makes focussing a joy - the smoothness and shifting-free operation sets new standards in this price class. This groundbreaking focuser, tube rings with 44mm universal standard dovetail and camera mounting feature and a high-end finderscope with haircross and laser-engraved scale leave nothing to desire even for demanding astrophotographers. The NT-203s/800 Hexafoc has a classical tube construction with an aluminium tube. The focuser can be upgraded with a 10:1 reduction (part No. 0625720) without problems. Also prepared for use with the HR Coma Corrector (part No. 0510330) which eliminates coma, field-curvature and astigmatism.
BRESSER EXOS-2 GoTo Equatorial Mount.
Mount, tripod and hand box with computer. This German mount has tracking motors in both axes that follow celestial objects very precisely. The handbox with GoTo works reliable and controls the mount in every situation. Precise ball bearings in both axes ensures minimal backlash at all nine possible tracking speeds. The battery pack (12 V) is conveniently fastened to the tripod shelf and takes eight size "D" batteries.
The mount rests on a very tough and rigid steel tripod and can take optical tubes of up to 13 kg. GOTO Stargazing at the push of a button !
FEATURES
- weight Tube without accessories: 8,7 kg - Tube with all accessories mounted: 11,5 kg
- weight EXOS II Goto: 5.0kg (without counterweight shaft, which weighs 1.0kg)
- weight Tripod: 4.9kg
- Aperture 203 mm
- Focal length 800 mm
- Focal ratio f/3,9
- Backfocus fully inward focused: 60mm
- 85mm secondary mirror for optimal illumination
- Diffraction limited optics with parabolic main mirror
- Cradle rings with handle and integrated piggyback camera holder (1/4 thread)
- Large knobs for primary and secondary mirror adjustment
- Dovetail plate with stainless steel rail
- Adjustable polar finder scope with optional illumination
- Bubble level for easy tripod setup
- Ball beared axes (RA / DEC) and worm gears for smooth and precise tracking
SCOPE OF DELIVERY
- Telescope tube
- EXOS II GOTO EQ mount with more than 100.000 sky-objects in data-base
- height adjustable stainless steel field tripod
- polar finder scope with optional illumination unit
- 2x counterweight 4.5kg
- Startracker GOTO handbox
- battery pack (batteries not included)
- Tube rings with handle and camera mounting feature
- 8x50 Finderscope recticle and true oriented view
- integrated 31.7 mm and T2 adapter
- adapter for 50.8 mm (2")
- mounting ring (for EXOS, LXD-75, EQ-5)
- handle with camera holder
- 8x50 Viewfinder
- 26mmm Super Plössl
- astronomy PC software Stellarium
- rotatable star map
- Manual
Technical Data
FIELD OF APPLICATION | |
---|---|
Field of application |
|
FOCUS GROUP | |
Focus Group |
|
PRODUCT FAMILY | |
Product Family | Reflector telescope |
OPTICAL SPECIFICATIONS | |
Optical design | Newtonian Reflector |
Magnification from | 20 |
Magnification up to | 400 |
Material Primary mirror | BK-7 |
Secondary mirror diameter | 85 mm |
Mirror/Lens diam. | 203 mm |
Focal length | 800 mm |
Aperture ratio | 3.9 |
Angular resolution | 0.56 arc seconds |
Finderscope | 8 x 50 mm |
Mount Type | German/Equatorial Mount with GoTo |
GENERAL TECHNICAL DATA | |
Material OTA | Aluminium |
Polefinder scope | included, illumination optional |
Drive system in RA / AZ | 12V DC servo motors with encoders |
Fine movements | Electric (RA and DEC) |
Bearing in alt-azimuth / RA | 2 ball bearings |
Bearing in elevation / DEC | 2 ball bearings |
Focusing system | 2.5" Hexafoc |
Colour | white |
Ext. warranty after online registration* | 10 Years |
DIMENSIONS & WEIGHTS | |
Net weight OTA (incl. accessories) | 11.5 kg |
Total length | 100 cm |
Total width | 100 cm |
Total height | 175 cm |
Tube diameter | 235 mm |
Tube length | 700 mm |
Net Weight total (incl. accessories) | 31 kg |
Counterweight | 9 kg |
Eyepiece Barrel Diameter | 50.8 mm |
